Green building materials standards
Designed in accordance with green building materials standards, 30% power generation guarantee
PREC technology
High Efficient the power generation gain is significantly improved with the back light gain
More security
Component-level safety shutdown, power optimization, monitoring functions
Reduce shadow occlusion loss
Half-chip technology + intelligent optimization technology
Avoid shadow occlusion and reduce power loss
Easy for installation
can achieve a flat & full installation
Suitable for various applications

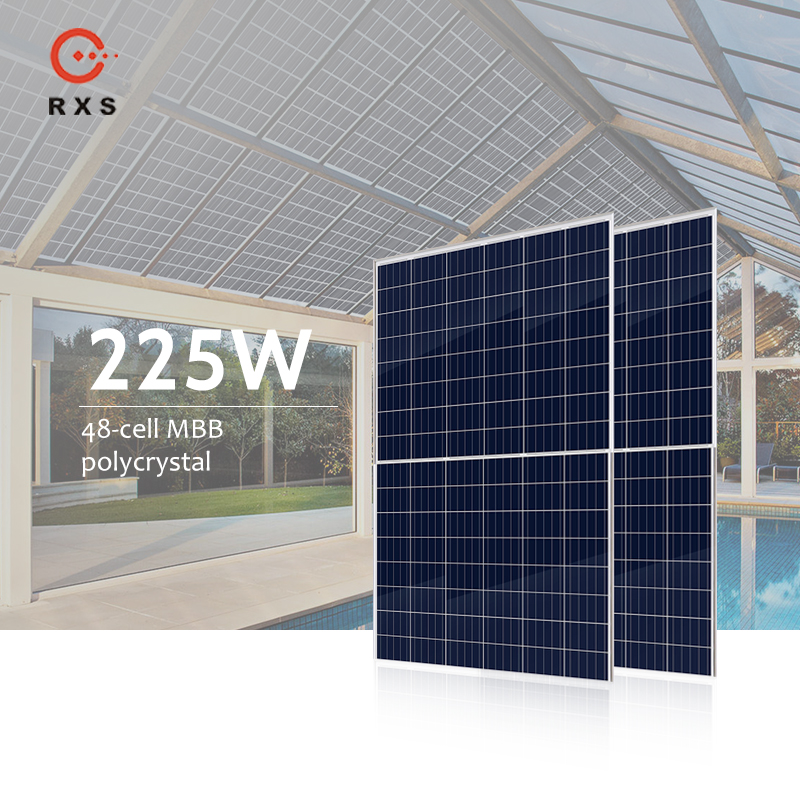

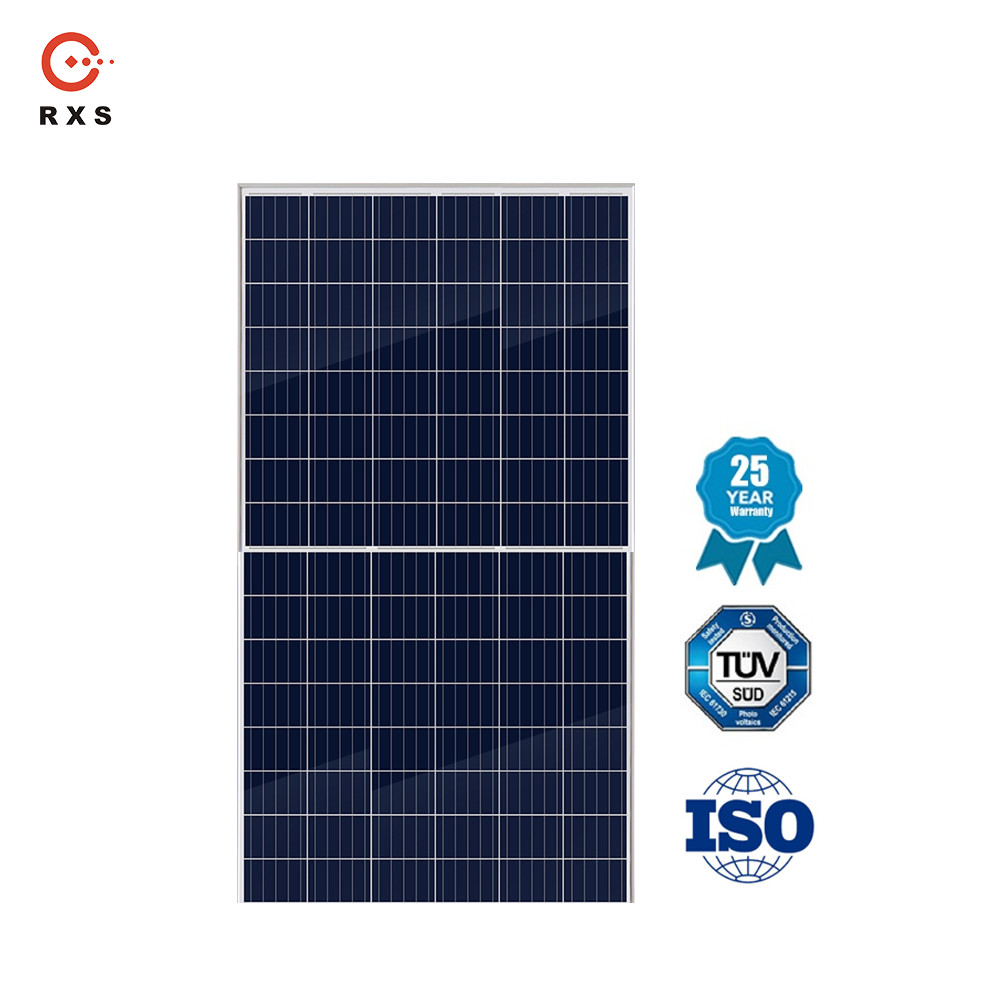

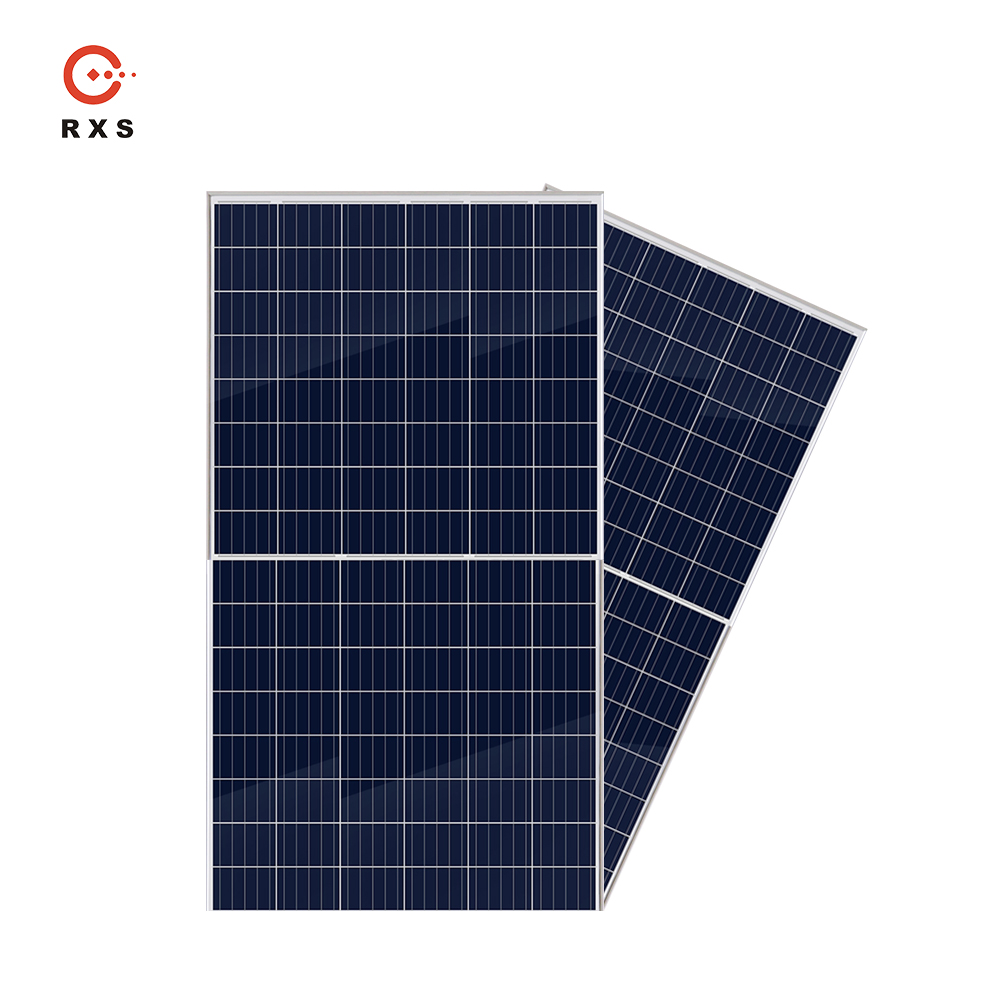

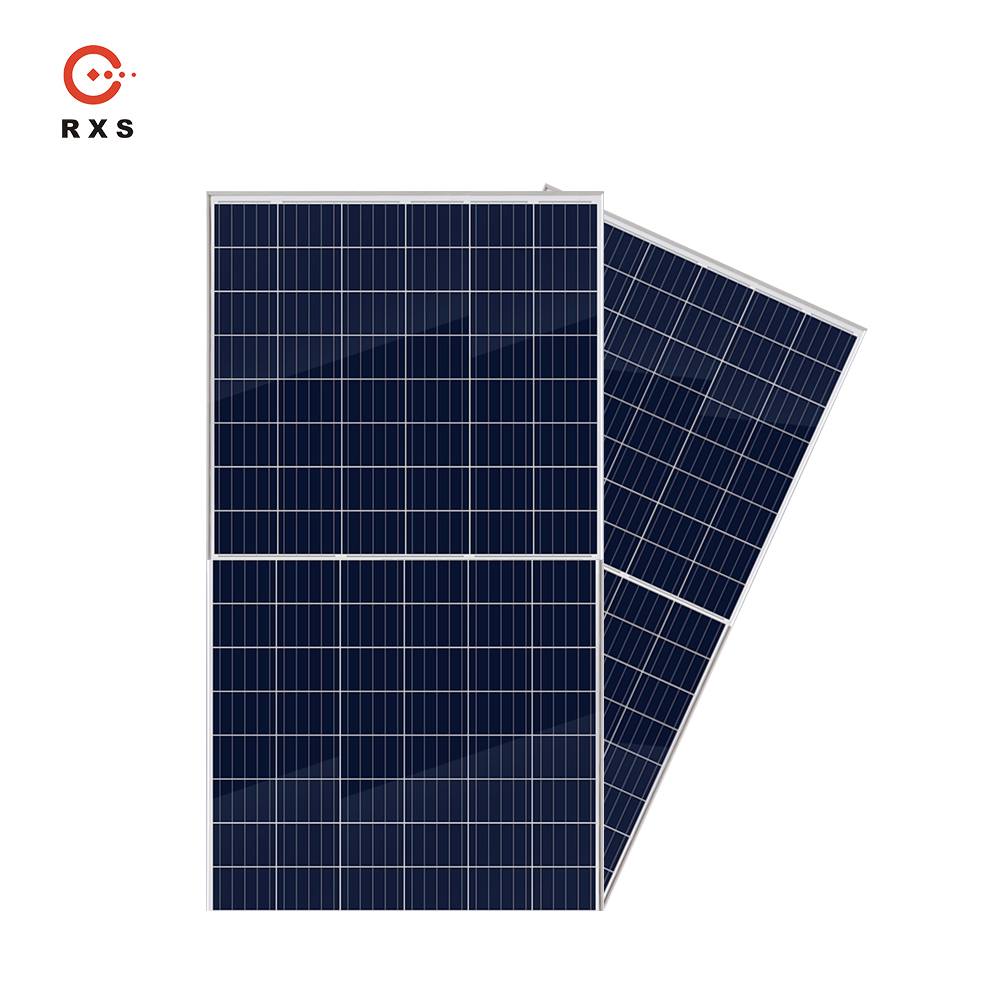

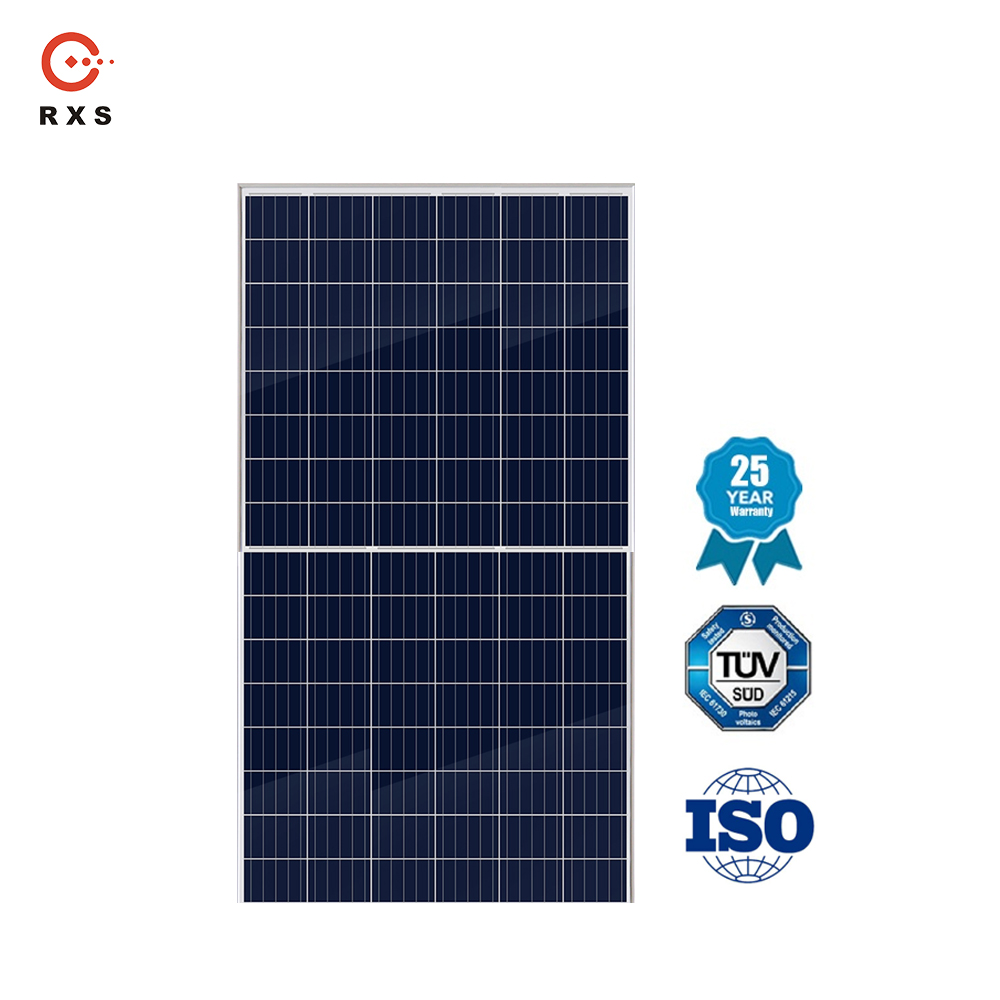

| BIPV Poly Bifacial Double Glass Module-MDN225~235 | |||
| Electrical performance parameters | |||
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5 | |||
| Type | MDN225 | MDN230 | MDN235 |
| Maximum power(Pm/Wp) | 225 | 230 | 235 |
| Maximum power voltage(Vmp/V) | 25.3 | 25.4 | 25.5 |
| Maximum power current(lmp/V) | 8.90 | 9.05 | 9.20 |
| Open circuit voltage(Voc/V) | 30.05 | 30.15 | 30.25 |
| Short circuit current(Isc/A) | 9.98 | 10.08 | 10.18 |
| Module efficient(%) | 16.7 | 17.0 | 17.4 |
| Module working temperature range (℃) | 45±2℃ | ||
| Temperature coefficient of Voc | -0.31%/℃ | ||
| Temperature coefficient of Isc | 0.05%/℃ | ||
| Temperature coefficient of Pm | -0.41%/℃ | ||
| Power tolerance(W) | 0~+5 | ||
| Mechanical performance parameters | |||
| Module dimension (L*W*H)(mm) | 1360*992*5 | ||
| Module weight (kg) | 15 | ||
| Cable | 4m㎡ negetive1000mm, positive1000mm | ||

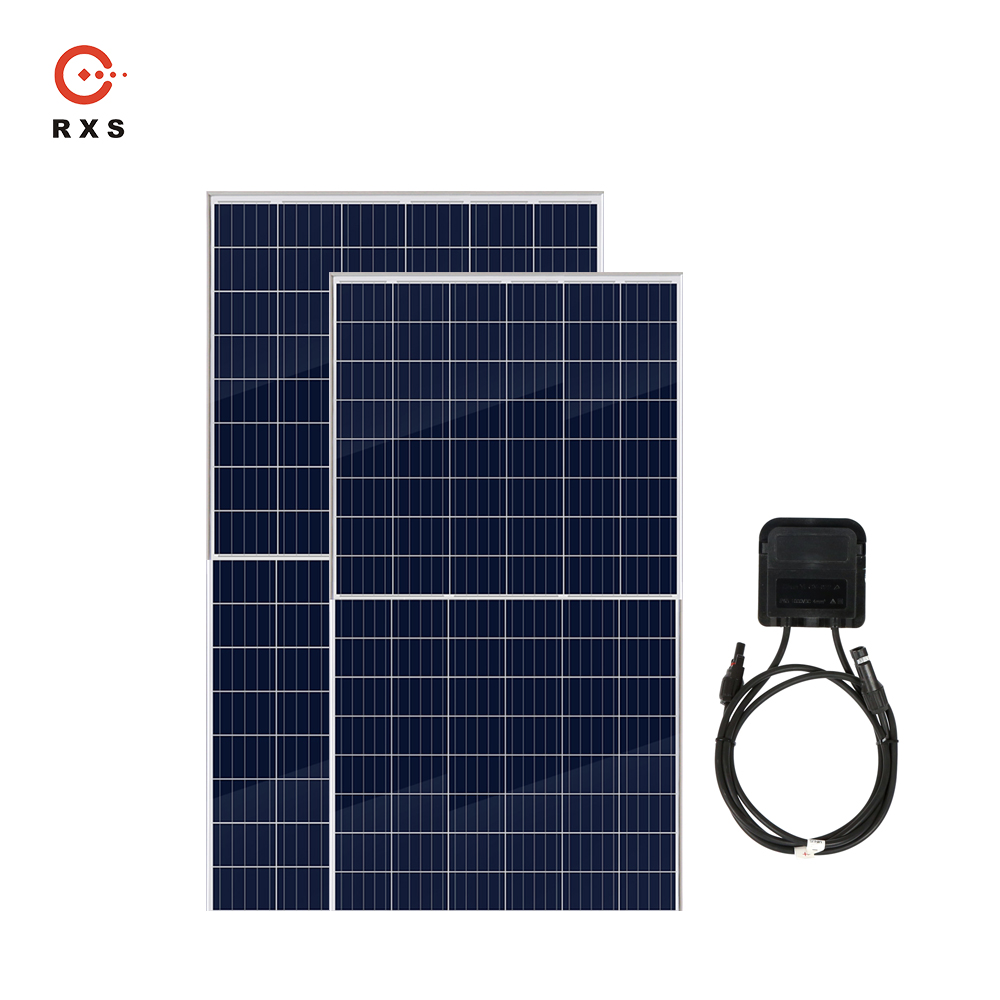

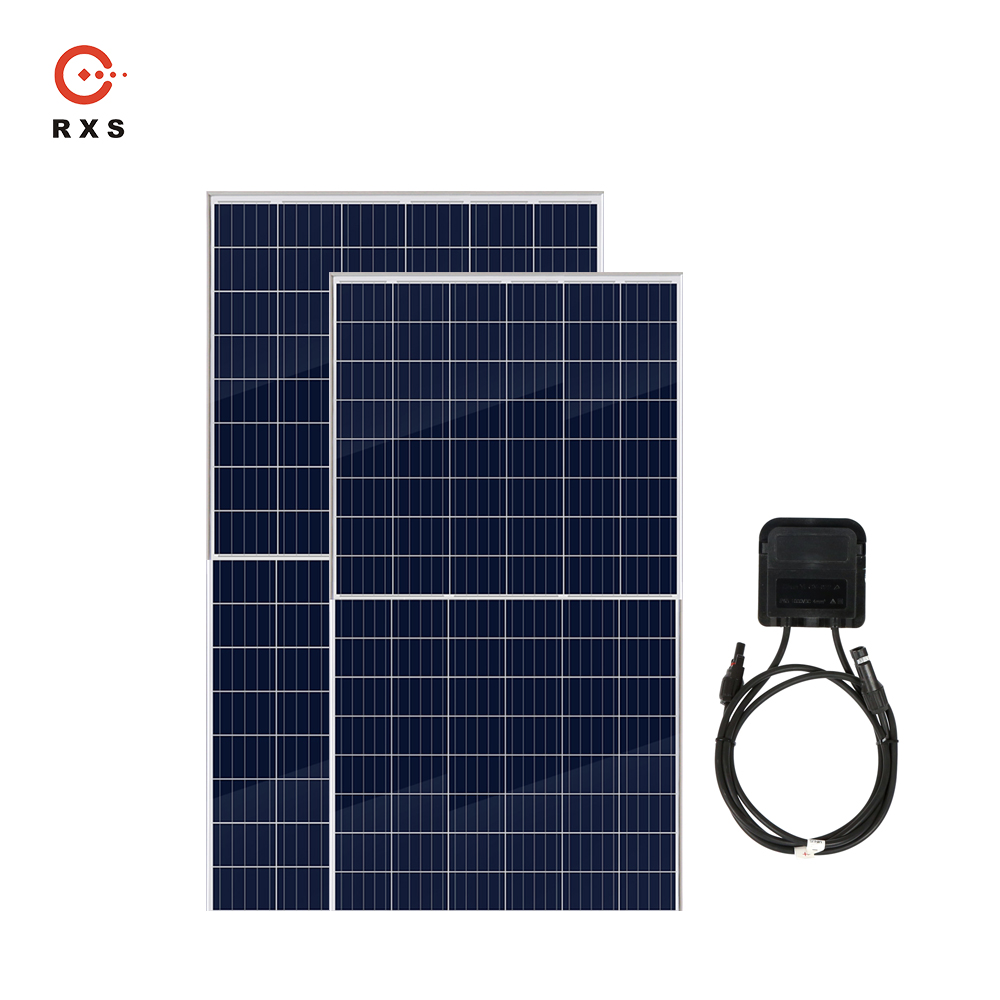

| Junction box/Connector | Ip67, split / MC4 compatible | ||
| Cell Nos & array | Poly half cut 96 cells（6*8*2） | ||
| Packing | 33pcs/pallet | ||
| Quality parameters | |||
| NOCT(℃) | -40~+85 | ||
| Maximum system voltage(V) | 1500DC | ||
| System maximum protection current(A) | 15 | ||
| Front/rear static loads(Pa) | 2400/2400 | ||
