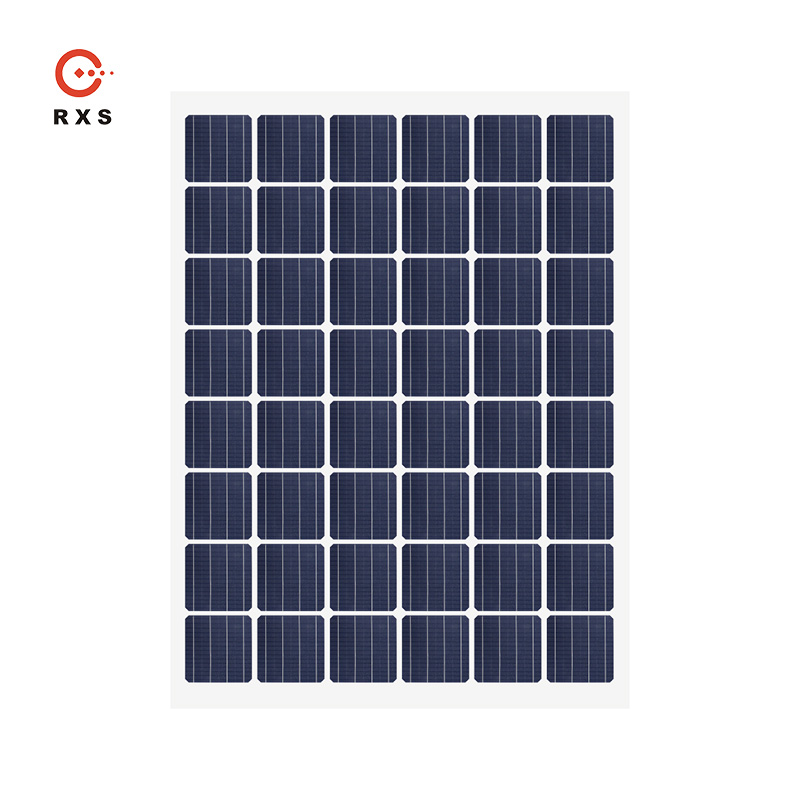

Poly Hollow Glass RXZK-MDN270

Consult online

Product Introduction

BIPV SOLAR MODULE

Product name		Polycrystalline silicon hollow glass module
Type		RXZK-MDM270
Electrical parameters	Maximum power (Pm/Wp)*	270
	Power tolerance (%)	±5
	Maximum power voltage (Vmp/V)*	31.84
	Maximum power voltage ( Imp/A)*	8.48
	Open circuit voltage (Voc/V)*	38
	Short circuit current (Isc/A)*	9.35
	Module efficiency ηc（%）*	14.4
	Maximum system voltage（V）	1500
	Working temperature（℃）	-40～85
	Temperature coefficient of Pm	-0.41%/℃
	Temperature coefficient of Voc	-0.31%/℃
	Temperature coefficient of Isc	+0.05%/℃
Mechanical parameters	Fault structure（mm）	5 Low iron tempered glass+0.76PVB+polysilicon cell+0.76PVB+5 tempered glass+9A+5 tempered glass
	Heat transfer coefficient	3.0W/m²K
	Cable	4mm²/900mm
	Module dimension (LWH)(mm)	1775mm1060mm26mm
	Module Weight (kg)	70kg
	Wind resistance	2.4kN/m²

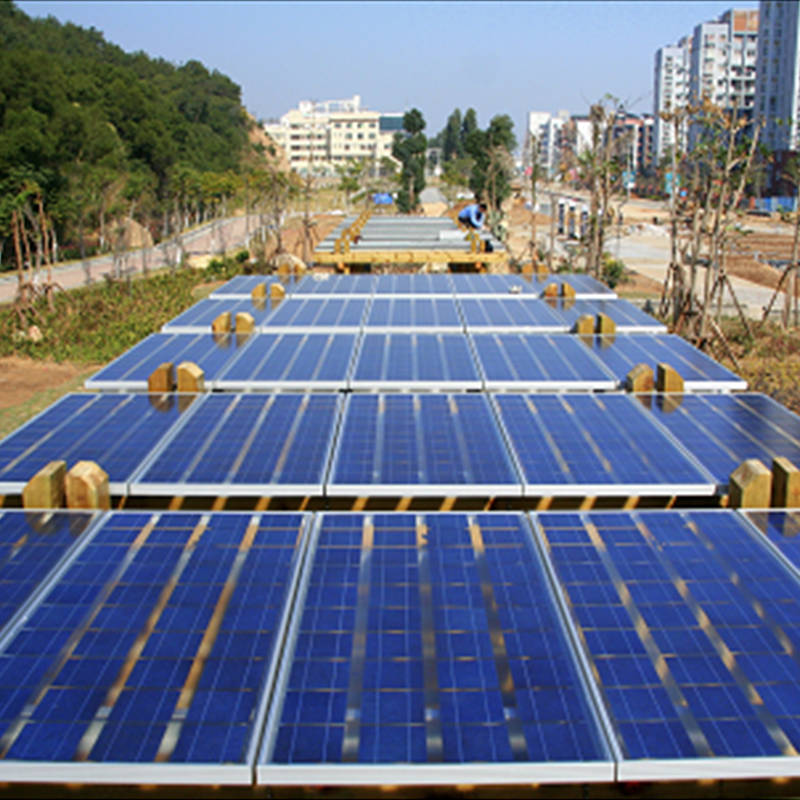

Utility
It is a photovoltaic power generation facility that is constructed and operated at or near the user's site, and is characterized by self-consumption on the user's side, excess power being connected to the Internet, and balanced adjustment in the distribution network system.
View More 

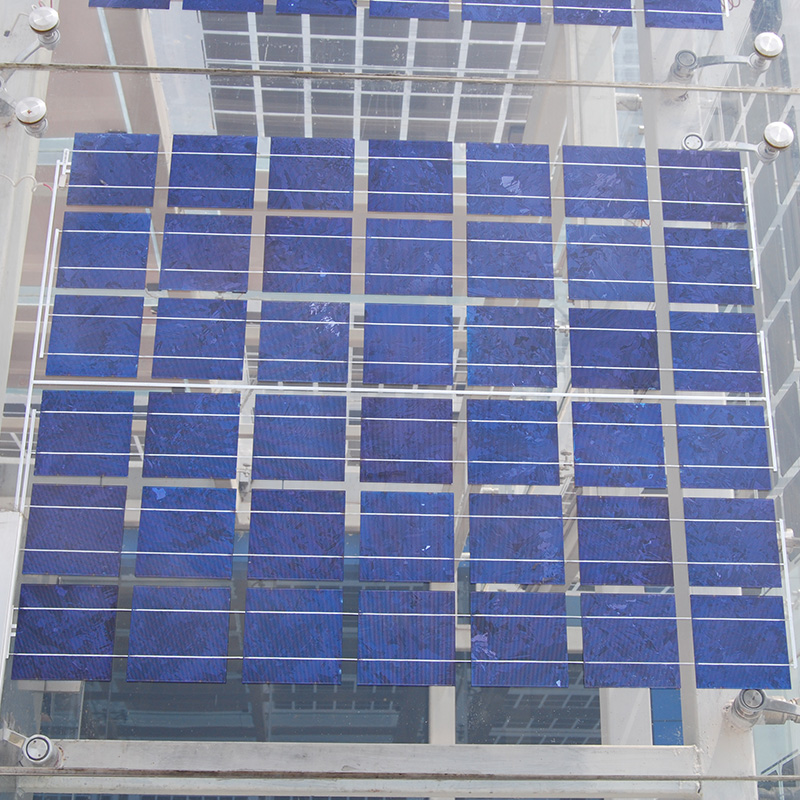

Commercial & Industrial
