Poly Bifacial Laminated Glass RXJJ-MDM270

Consult online

Product Introduction

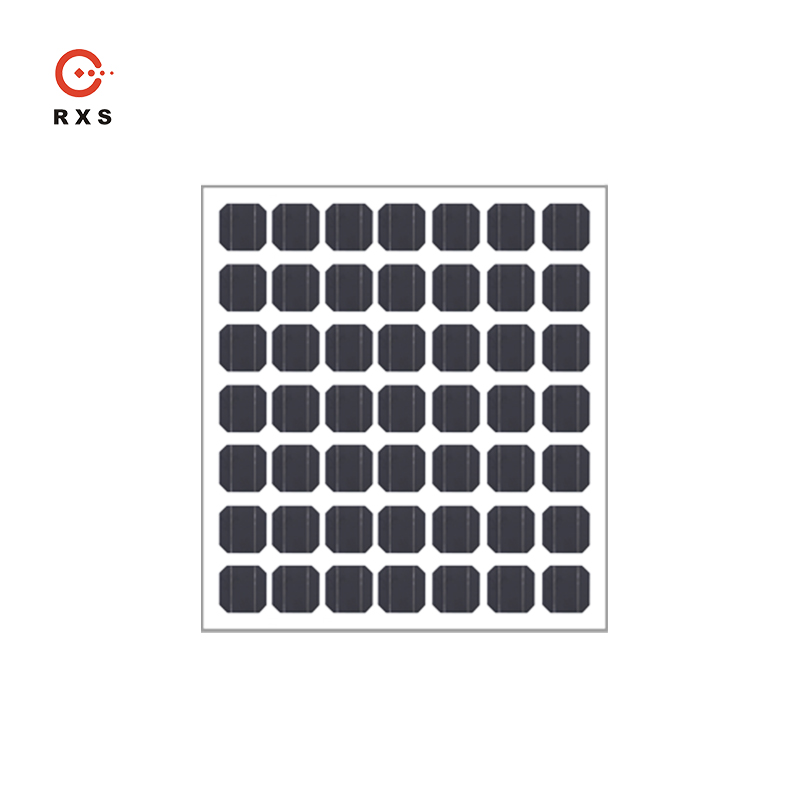

BIPV SOLAR MODULE

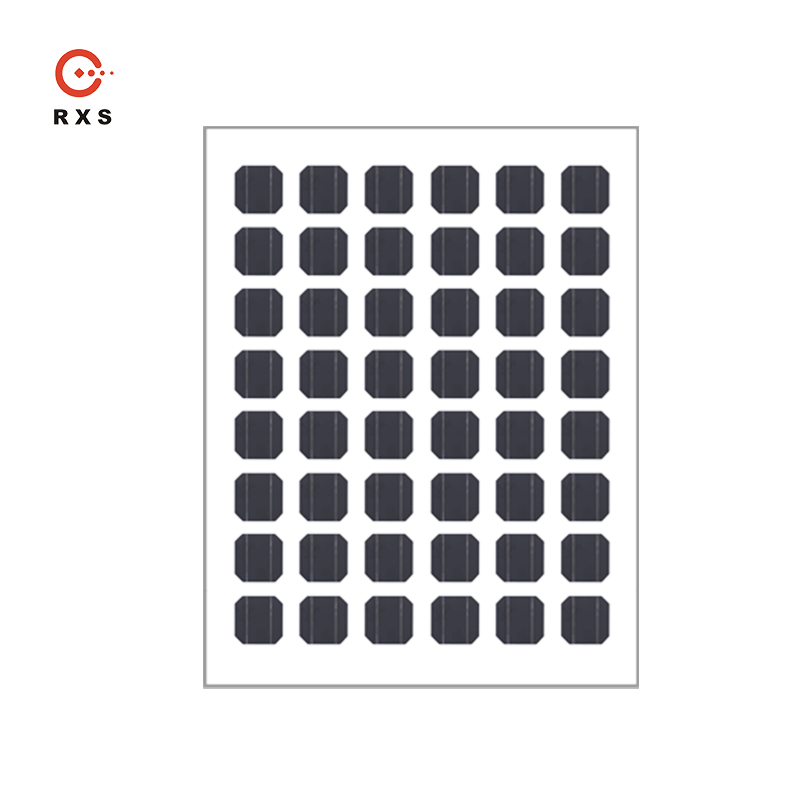

BIPV SOLAR MODULE

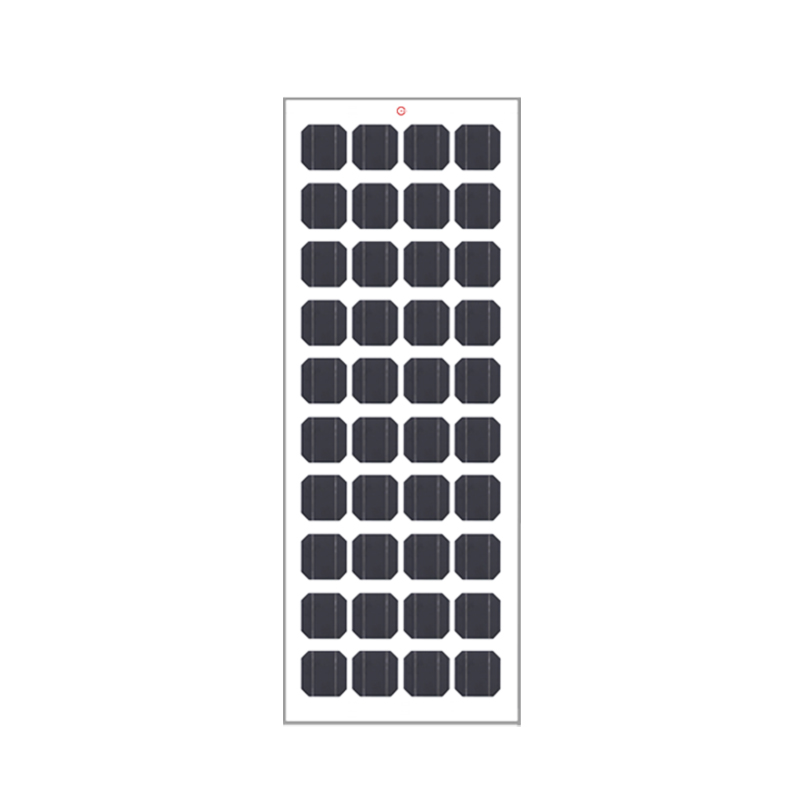

BIPV SOLAR MODULE

BIPV SOLAR MODULE

Product name		Polycrystalline Silicon Laminated Glass Module
Type		RXJJ-MDM270
Electrical parameters	Maximum power (Pm/Wp)*	270
	Power tolerance (%)	±5
	Maximum power voltage (Vmp/V)*	31.84
	Maximum power voltage ( Imp/A)*	8.48
	Open circuit voltage (Voc/V)*	38
	Short circuit current (Isc/A)*	9.35
	Module efficiency ηc（%）*	14.4
	Maximum system voltage（V）	1500
	Working temperature（℃）	-40～85
	Temperature coefficient of Pm	-0.41%/℃
	Temperature coefficient of Voc	-0.31%/℃
	Temperature coefficient of Isc	+0.05%/℃
Mechanical parameters	Fault structure（mm）	5 Low iron tempered glass+0.76PVB+polycrystalline silicon cell+0.76PVB+5 tempered glass (3.2+3.2 glass can also be used, the thickness is reduced and the weight is reduced)
	Cable	4mm²/900mm
	Module dimension (LWH)(mm)	1775mm1060mm11mm
	Module Weight (kg)	56kg
	Wind resistance	2.4kN/m²
